Product Description
TBM Single Caliper Rear Brake Kit - Symmetrical Housing Ends measuring 3.150" are specifically designed for Dragsters which present some of the most demanding conditions for brake components. TBM F3 Caliper Brake Systems are specifically designed for high speed stopping often times without parachutes, hot lapping/round robin racing, driving the finish line, and other demanding variables. TBM took all of this into consideration and spent years developing/refining their rear brake kits.
This very capable, durable, no drag offering is up to the task to perform in these conditions. Utilizing our specially developed 11.50 OD Revolution rotor which handles heat but offers a lightweight solution that stays flat run after run. Pairing with the strongest in class TBM F3 caliper you have a home run combination to help you park your race car in the winners circle! With a revolutionary design, TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer brake pad life.
The Hats on this kit fit a 5x4-1/2" or 5x4-3/4" Bolt Pattern with 2.75" - 2.91" Axle Flange Offset.
Made in U.S.A.
Included in this kit:
-
Included in this kit:
- (2) F3 Calipers 002-0056SSP-1 / 002-0056SSP-2
- (2) 11.500"x.375 rotors 3-1150375D
- (2) sets pads #1 compound standard track pads 6-0102W
- (2) Caliper mounting brackets 16-0173-1150-1 / 16-0173-1150-2
- (2) Hats 204-0214
- Mounting hardware kit 011-0187

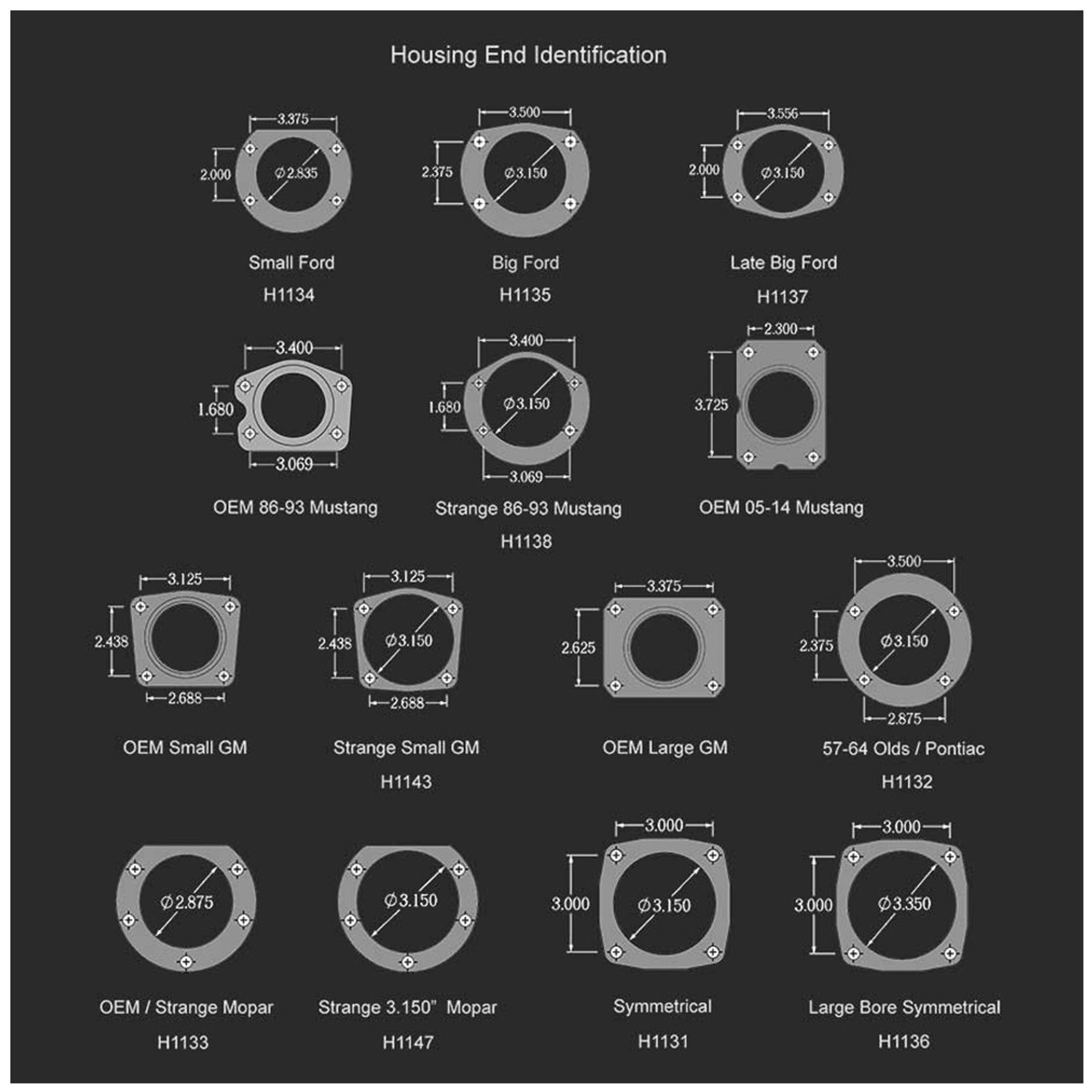

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
